SCHMIDT 1915

Wheel Loader Test

SCHMIDT 1915 is the basic model from the category of mini loaders in our offer. Its total length with the bucket is only a little over 3 meters, width a little over 90 cm and the maximum internal turning radius will not exceed 1000 mm. Thanks to its compact design, the machine works great in small spaces where precise work needs to be done.

  • Weight 1150 kg
  • Max load capacity 700 kg
  • Height of the substructure 2.1 m
  • KUBOTA D902-EF03 engine – 3 cylinders, engine power 22HP
  • Controlled by a multi-function joystick
  • Hydrostatic drive
  • Hydraulics Oleodinamica
  • Hydraulic quick coupler
  • Additional hydraulic connection

Detailed description

Model 1915

Model

 Emission certificate

 Power

Number of cylinders

Kubota D902-EF03

EU Stage V

15.9 kW/rpm

3

Capacity 1123
Cooling water cooling
Operating voltage 12V
Battery 45
Mass

  • Operating weight (standard) [kg]
  • Maximum lifting force [kg]


1150

560

Rated load with bucket                [kg]
With the arm raised straight ahead 700
With the arm raised while turning 480
Charger details
Driving speed 12 km/h
Fuel tank capacity 25 l
Hydraulic oil 32 l

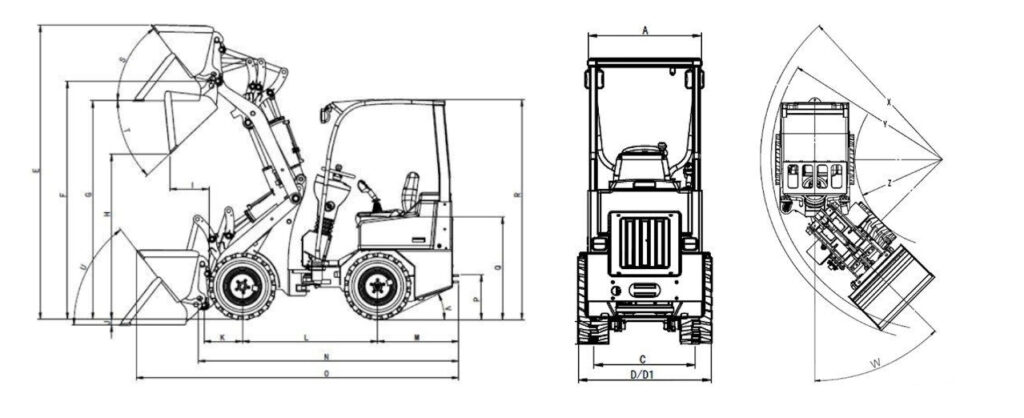

Dimension:
