Sweeper with hydraulic basket
July 11, 2024
No Comments
[custom_slider]
Detailed description
| Model |
3530 |
||
|---|---|---|---|
| Engine | model |
Kubota D1105-EF02 |
|
| Emission Certification |
EURO5 |
||
| power |
kW/rpm |
18.5kW |
|
| number of cylinders |
3 |
||
| capacity |
1123 |
||
| cooling |
water cooled |
||
| operating voltage |
V |
12 |
|
| battery |
60 |
||
| Mass | operating weight (standard) (kg) |
1700 |
|
| maximum lifting force (kg) |
1100 |
||
| Rated load with bucket (according to ISO 14397) (kg) arm 260 cm/290 cm | |||
| with the arm raised straight ahead |
1000/850 |
||
| with the arm raised while turning |
750/550 |
||
|
Rated load with pallet forks (according to ISO 14397) (kg) |
|||
| with the arm raised straight ahead |
780/600 |
||
| with the arm raised while turning |
520/420 |
||
| Charger details | |||
| driving speed |
km/h |
0-12 |
|
| Fuel tank capacity |
26 |
||
| hydraulic oil |
l |
40 |
|
| Hydraulic drive | |||
| efficiency |
l/min |
84 |
|
| working pressure |
bar |
300 |
|
| Hydraulic control | |||
| efficiency |
l/min |
32 |
|
| working pressure |
bar |
180 |
|

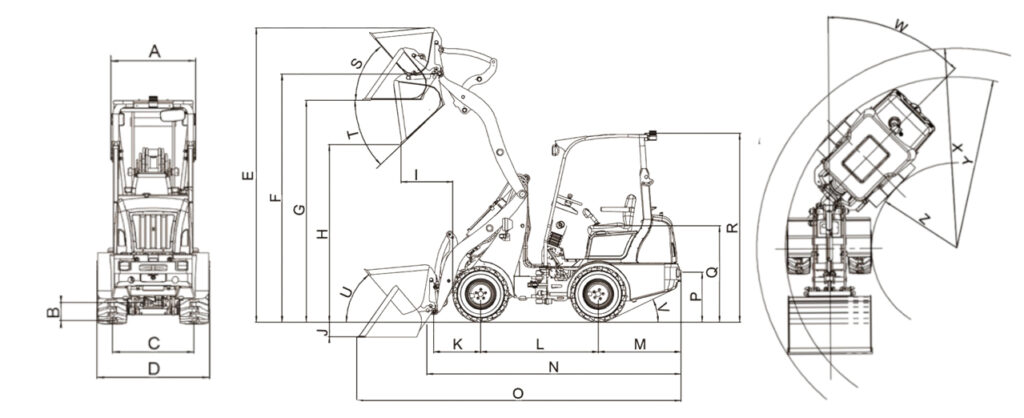

| Dimensions | |||
|
AND |
Width over tires |
mm |
830 |
|
B |
Minimum clearance |
mm |
174 |
|
C |
Wheelbase |
mm |
803 |
|
D |
Overall width |
mm |
1110 |
|
E |
Maximum lifting height |
mm |
3440 |
|
F |
Maximum height to hinge pin |
mm |
2900 |
|
G |
Transfer height |
mm |
2596 |
|
H |
Maximum drop height |
mm |
2066 |
|
AND |
Range at maximum lift height |
mm |
613 |
|
J |
Digging depth |
mm |
170 |
|
K |
Distance from center of front axle to hitch |
mm |
550 |
|
L |
Wheelbase |
mm |
1370 |
|
M |
Distance from rear axle to bumper |
mm |
960 |
|
N |
Total length without spoon |
mm |
2960 |
|
ABOUT |
Total length with spoon |
mm |
3780 |
|
P |
Hitch height |
mm |
585 |
|
Q |
Seat height |
mm |
1128 |
|
R |
Height to top of FOPS structure |
mm |
2210 |
|
S |
Back tilt angle at maximum load |
deg. |
49 |
|
T |
Maximum throw angle |
deg. |
43 |
|
X |
Minimum turning radius |
mm |
2590 |
|
Y |
Turning radius at outer edge |
mm |
2220 |
|
WITH |
turning radius on the inside edge |
mm |
1110 |
|
AT |
Deflection angle – ground |
deg. |
50 |
|
V |
Departure angle |
deg. |
25 |
|
IN |
Turning radius |
deg. |
45 |
| Width 27×8.5-15 |
mm |
970 |
|
| Width 26×12-12 AS |
mm |
1110 |
|
Dimensions:
