SCHMiDT 3639 – Closed Cabin
Our mini series loaders are distinguished by their compact design and small turning radius, thanks to which it is possible to work even in a very small space. The machines have a very durable design and are very easy to operate. A very strong hydraulic system and high lifting and ground breakout force ensure high efficiency. Large ground clearance, low center of gravity and good load distribution even on difficult ground ensure exemplary stability. The machines are characterized by excellent visibility, easy change of attachments, very simple operation using a multi-function joystick.
Detailed description
| Model | 3639 |
Engine
|
|
| Electrical system | |
| Operating voltage | 12V |
| Battery | 60 Ah |
| Libra | [kg] |
| Operating weight (standard) | 2280 kg with cabin |
| Maximum lifting force | 1750 kg |
| Rated load with bucket |
[kg] |
| with the arm raised straight ahead | 1280 kg |
| with the arm raised while turning | 840 kg |
| Rated load with pallet forks | [kg] |
| with the arm raised straight ahead | 1120 kg |
| with the arm raised while turning | 700kg |
| Charger details | ||
|---|---|---|
| driving speed | 0~8 / L:0~11 L:0~11 H:0~18 | |
| Fuel tank capacity | 45 l | |
| Hydraulic oil | 40 l | |
| Hydraulic system | ||
| Hydraulic drive | efficiency | 102 l/min |
| Working pressure | 380 bar | |
| Hydraulic control | efficiency | 45 l/min |
| Working pressure | 180 bar |
| Dimensions | ||
| AND | Width over tires | 1048mm |
| B | Minimum clearance | 250mm |
| C | Wheelbase | 795mm |
| D | Overall width | 1080mm |
| D1 | Total width with bucket | 1320mm |
| E | Maximum lifting height | 3728mm |
| F | Maximum height to bucket pivot point | 3100mm |
| G | Maximum horizontal lifting height | 2775mm |
| H | Maximum drop height | 2110mm |
| AND | Range at maximum lift height | 484mm |
| J | Digging depth | 200mm |
| K | Distance from center of front axle to hitch | 590mm |
| L | Wheelbase | 1600mm |
| M | Distance from rear axle to bumper | 1094mm |
| N | Total length without spoon | 3440mm |
| ABOUT | Total length with spoon | 4360mm |
| P | Hitch height | 700mm |
| Q | Seat height | 1162mm |
| R | Height to top of FOPS structure | 2225mm |
| S | Back tilt angle at maximum load | 45 degrees |
| T | Maximum throw angle | 45 degrees |
| X | Minimum turning radius | 3085mm |
| Y | Turning radius at outer edge | 2597mm |
| WITH | turning radius on the inside edge | 1450mm |
| AT | Deflection angle – ground | 46 degrees |
| V | Departure angle | 27 degrees |
| IN | Turning radius | 45 degrees |
| Width 10-16.5NHS | 1080mm | |
| width 31X15.5-15AS | 1340mm |

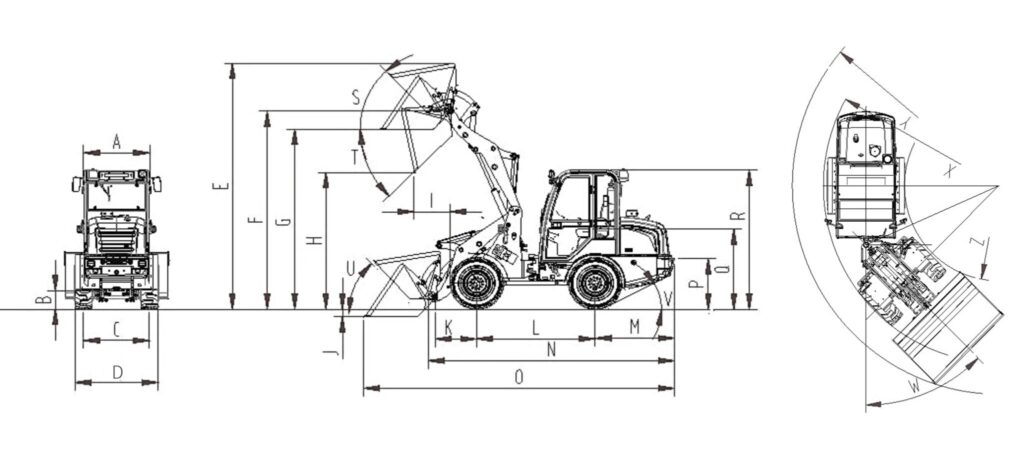

Dimensions:
